sysmocom eUICC for eSIM

We are not only offering classic SIM / UICC / USIM / ISIM / HPSIM products in plastic card and MFF2 form-factor, but also eUICCs for the GSMA consumer and M2M eSIM system.

Our eUICCs are available in two flavours:

• production eUICCs working within the GSMA eSIM CA / root-of-trust. This means that each eUICC contains a certificate within the GSMA eSIM CA, enabling you to install eSIM profiles from virtually any operator offering eSIMs

• testing/private eUICCs which do not contain GSMA certificates/key material, but testing or private root-of-trust certificates. This makes them incompatible with commercially available eSIM profiles, but allows researchers, software developers, laboratories and small/private network operators to run their own entirely independent eSIM universe without any GSMA involvement. We also operate a Test SM-DP+ For downloading TS.48 test profiles to SGP.26 eUICC.

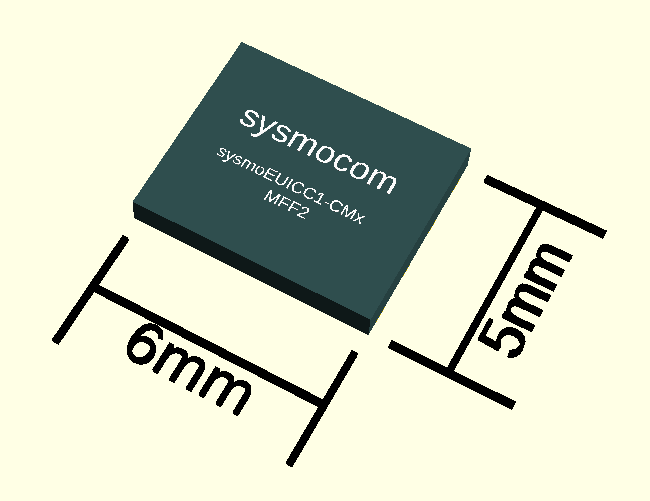

We can provide the sysmocom eUICC either as MFF2 solder-type package, or in a regular 2FF/3FF/4FF plastic card. The latter option enables you to plug an eUICC into virtually any traditional mobile device without built-in eSIM support.

Our standard off-the-shelf consumer eUICC products are available from our webshop

• as 2FF/3FF/4FF plastic card at MOQ-1

• as MFF2 solder-type package at MOQ-10

The products are suitable both for for R&D, testing and laboratory use, as well as production deployments.

The user manual is already available.

For production (private or public) cellular network operation, we are able to supply bulk quantities of eUICCs personalized according to operator requirements.

Customization also includes customer-specific artwork/printing on both sides of the plastic cards.

The minimum order quantity for customized eUICC products is 1,000 units.
